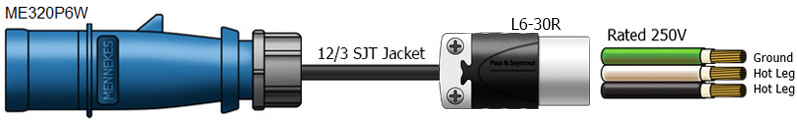

320P6W to L6-30R Plug Adapter Power Cord

$182.60

320P6W to L6-30R Power Adapter Cables

SKU: IBX-4513

320P6W to L6-30R Plug Adapter –  20A, 250V


Specifications:

Male Plug                                        320P6W  (Pin and Sleeve)
Female Connector  NEMA Twist-Lock L6-30R
Amperage 20A
Voltage 250V
Length 1 Foot
Conductors 3 wire
Wire Gauge 12/3
Jacket Waterproof SJOOW

 Technical Notes:  Uses black water-resistant 10/3 SOOW premium-grade jacket.  Black jacket available.

 Applications: Convert a NEMA locking L6-30P power cord plug to an IEC 60309 Pin and Sleeve 320P6W plug

Custom built to order

 Part Number: IBX-4513
