330P7W to NEMA L8-30R Plug Adapter Power Cord

$191.76

330P7W to L8-30R Power Adapter Cables

SKU: IBX-2622

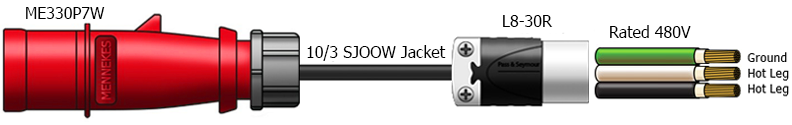

 Pin and Sleeve  330P7W to NEMA L8-30R Pigtail Power Cord Plug Adapter



Specifications:

Male Plug                                         330P7W (IEC 60309)
Female Connector  NEMA L8-30R
Amperage 30 Amps
Voltage 480V
Length 1 Foot
Conductors 3 wire
Wire Gauge 10/3
Jacket SJOOW

 Technical Notes:  Uses 10/3 SJOOW premium grade water/oil resistant jacket –  Ground is in the 7 O’Clock position

 Applications: Convert a pin and sleeve L8-30 plug to a pin and sleeve 330P7W plug
 For use in areas of high moisture, generators, data centers, watertight marine applications

 AKA: 330P7W Pin and Sleeve Adapter, 30A pin and sleeve cord, 330P7W to L8-30P

Custom built to order

 Part Number: IBX-2622
