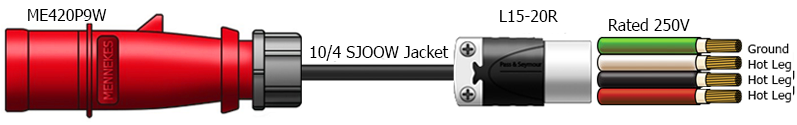

420P9W to L15-20R Power Adapter Cables
420P9W to L15-20R Power Cord Plug Adapter
Specifications:
| Male Plug | 420P9W (IEC 60309) |
| Female Connector | NEMA L15-20R |
| Amperage | 20 Amps |
| Voltage | 250V |
| Length | 1 Foot |
| Conductors | 4 wire |
| Wire Gauge | 10/4 |
| Jacket | SJOOW |
Technical Notes: Uses 10/4 SJOOW premium grade water/oil resistant jacket – Ground is in the 9 O’Clock position
Applications: Convert a pin and sleeve L15-20 plug to a pin and sleeve 420P9W plug
For use in areas of high moisture, generators, data centers, watertight marine applications
AKA: 420P9W Pin and Sleeve Adapter, 20A pin and sleeve cord, 420P9W to L15-20P
Custom built to order
Part Number: IBX-2625
