NEMA 5-15P to L14-30R Power Adapter Cables

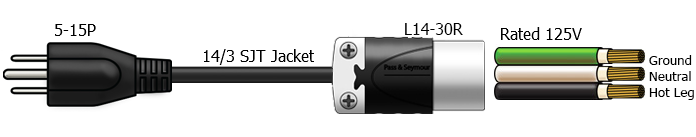

5-15P to L14-30R Power Cord Plug Adapter – 1 Foot, 15A, 125V
Specifications:
| Plug Type | 5-15P |
| Connector Type | L14-30R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Make sure your device doesn’t require more amperage than your receptacle provides
Applications: Adapt a 250V L14-30P to fit a NEMA 5-15R outlet. This cord is wired to provide a 125V power source.
Custom Options: Custom lengths, SJOOW or SOOW cable type, wire grips, and various plug/connector types including valise, corrosion resistant, angled, watertight, heavy duty, and molded – Contact us for pricing
Custom built to order
AKA: 515 to L1430 Adapter, 5-15 to L14-30 Pigtail, L14-30R to 5-15P plug adapter
Part Number: IBX-5185-X (X = Length)
