NEMA 5-15P to L5-15R Power Adapter Cables

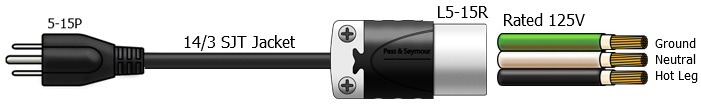

NEMA 5-15P to L5-15R Power Cord Plug Adapter, 1 Foot, 15A, 125V.jpg)
Specifications:
| Plug Type | 5-15P |
| Connector Type | L5-15R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Technical Notes: Make sure your device doesn’t need more amps than the outlet allows
Applications: Adapt a L5-15P straight blade plug to fit a 5-15R outlet
Custom Options: SJOOW or SOOW Cable; Heavy Duty/Valise/Watertight/Corrosion Resistant ends; custom lengths
Custom built to order
Also Known As: 515 to l515r Adapter, 5-15 to l5-15 Pigtail, NEMA L5-15 to 5-15P plug adapter
Part Number: IBX-5501-X (X = Length)
