5-15P to L6-15R Plug Adapter Power Cord

$53.90

NEMA 5-15P to L6-15R Power Adapter Cables

SKU: IBX-1028

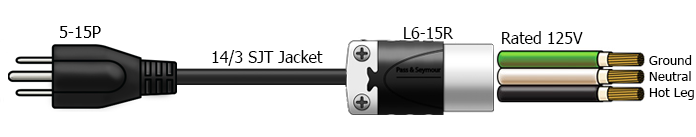

5-15P to L6-15R Power Cord Plug Adapter – 1 Foot, 15A, 125V


Specifications:

Plug Type                        5-15P
Connector Type L6-15R
Length 1 Foot (Custom Lengths Available)
Amperage 15 Amps
Voltage                               125V
Number of Conductors
Wire Gauge 14 AWG
Jacket Type SJT
Temperature Rating
105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity

 Technical Notes:  Make sure your device doesn’t require more amperage than your receptacle provides

 Applications: Adapt a 250V L6-15P to fit a NEMA 5-15R outlet.  This cord is wired to provide a 125V power source.

 Custom Options: Custom lengths, SJOOW or SOOW cable type, wire grips, and various plug/connector types including  valise, corrosion resistant, angled, watertight, heavy duty, and molded – Contact us for pricing

Custom built to order

 AKA: 515 to l615 Adapter, 5-15 to L6-15 Pigtail, L6-15R to 5-15P plug adapter

Part Number: IBX-1028-X (X = Length)
