520P5W to L23-20R Plug Adapter Power Cords

520P5W to L23-20R Plug Adapter Power Cords

$186.62

520P5W to L23-20R Power Adapter Cables

SKU: IBX-4210

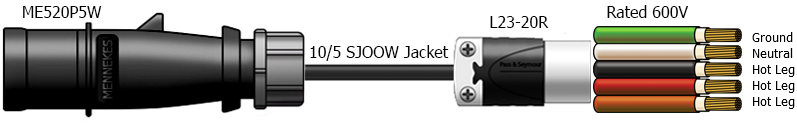

 520P5W to L23-20R Power Cord Plug Adapter

Specifications:

Male Plug                                IEC 60309 520P5W
Female Connector  L23-20R
Amperage 20A
Voltage 600V
Length 1 Foot
Conductors 5 wire
Wire Gauge 10/5
Jacket SJOOW

 Technical Notes:  Make sure your device doesn’t need more amps than the outlet allows

 Applications: Convert a NEMA locking L23-20 plug to fit a pin and sleeve 520C5W receptacle

 Also Known As:  L23-20P Adapter, L23-20 to IEC 309, 3 phase NEMA to pin and sleeve

Custom built to order

 Part Number: IBX-4210
