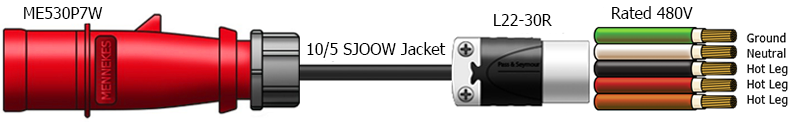

530P7W to L22-30R Power Adapter Cables
530P7W to NEMA L22-30R Power Cord Plug Adapter
Specifications:
| Male Plug | IEC 60309 530P7W |
| Female Connector | L22-30R |
| Amperage | 30A |
| Voltage | 480V |
| Length | 1 Foot |
| Conductors | 5 wire |
| Wire Gauge | 10/5 |
| Jacket | SJOOW |
Technical Notes: Make sure your device doesn’t need more amps than the outlet allows
Applications: Convert a NEMA locking L22-30 plug to fit a pin and sleeve 530C7W receptacle
Also Known As: L22-30 Adapter, L22-30 to IEC 309, 3 phase NEMA to pin and sleeve
Custom built to order
Part Number: IBX-3280
