Right Angle C20 to C19 Power Cords, 20A, 250V, 12/3 SJT

$7.96 – $15.02

IEC 60320 20 Amp Right Angle C20 to C19 Server Power Cords

Choose Length

Clear

SKU: IBX-4770-XX

Right Angle C20 to C19 Power Cords, 20A, 250V

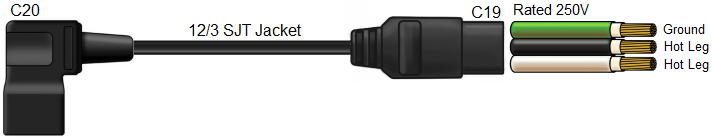

right angle c20 to c19

Specifications:

Plug Type	IEC Right Angle C20
Connector Type	IEC C19
Length	2, 3, 4, 6, 10 Feet
Amperage	20 Amps
Voltage	250V
Number of Conductors	3
Wire Gauge	12/3 AWG
Jacket Type	SJT
Temperature Rating	105º C
Color	Black
Testing	Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications	UL Listed

Documents: RoHS REACH Conflict Minerals Report (CMRT)

Applications: Right angled C20 plug lets you plug a device into a PDU in small spaces

AKA: C19 IEC Right Angle C20 Cables, IEC 320 Right Angled C20 to IEC C19 Cables

Part Number: IBX-4770-XX (XX = Length)
