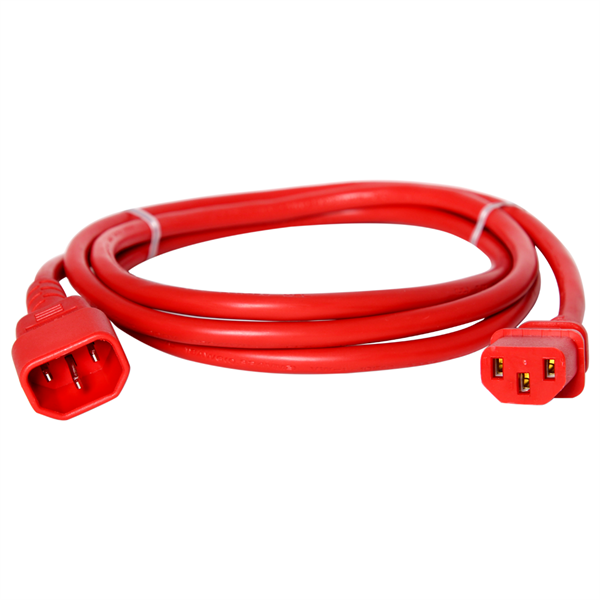

IEC 60320 15 Amp Red C14 to C13 Server Power Cords
IEC 60320 Power Cords – C14 Plug to C13 Connector, Red, 15A, 250V, 14/3 SJT
Specifications:
| Plug Type | IEC C14 |
| Connector Type | IEC C13 |
| Length | 1 – 8, 10, 15 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Red |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | UL Listed |
Documents: RoHS REACH Conflict Minerals Report (CMRT)
Applications: Connect a computer power supply to a C13 receptacle in a data rack PDU
AKA: C13 Power Cords, C14 Power Cables, Red C14 to C13 Jumper Cords
Part Number: IBX-2804-XX (XX = Length)
