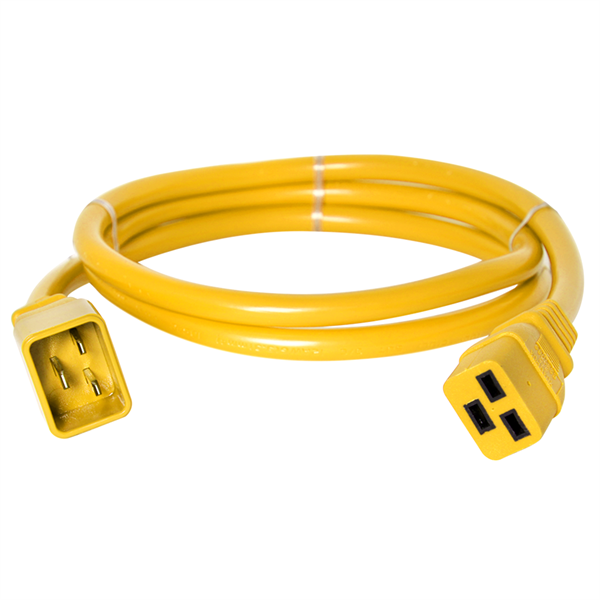

IEC 60320 20 Amp Yellow C20 to C19 Server Power Cords
IEC 60320 Power Cords – C20 Plug to C19 Connector, Yellow, 20A, 250V, 12/3 SJT
Specifications:
| Plug Type | IEC C20 |
| Connector Type | IEC C19 |
| Length | 1, 2, 3, 4, 6, 8, 10 Foot (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Yellow |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | UL Listed |
Documents: RoHS REACH Conflict Minerals Report (CMRT)
Applications: Connect a power supply on a high end server or network gear to a C19 receptacle in a data rack PDU
AKA: C19 Power Cords, C20 Power Cables, C20 to C19 Jumper Cords
Part Number: IBX-2820-XX (XX = Length)
Fax Purchase Orders to 1-800-447-1381 or email [email protected]
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
