C20 to L5-20R Plug Adapter Power Cord

C20 to L5-20R Plug Adapter Power Cord

$27.48

IEC C20 to L5-20R Power Adapter Cables

SKU: IBX-1118

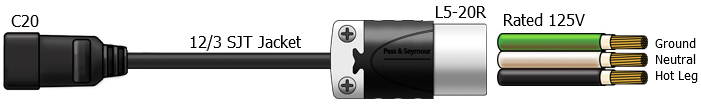

 C20 to L5-20R Power Cord Plug Adapter, 1 Foot, 20A, 125V

Specifications:

Plug Type                        C20
Connector Type L5-20R
Length 1 Foot (Custom Lengths Available)
Amperage 20 Amps
Voltage                               125V
Number of Conductors 3
Wire Gauge 12 AWG
Jacket Type SJT
Temperature Rating
 105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity

 Technical Notes: Make sure your device doesn’t need more amps than the outlet allows

 Applications: Convert a NEMA locking L5-20 plug to an IEC 320 C20 server power cord plug

Custom built to order

   Part Number: IBX-1118
