NEMA 30 Amp L15-30R to ROJ Power Cord Whips

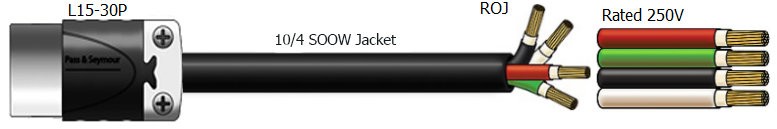

NEMA L15-30R to ROJ Power Cord Whips – 30A, 250V .png)
Specifications:
| Plug Type | ROJ Stripped End / Or Blunt Cut |
| Connector Type | L15-30R |
| Length | 1-50 Foot |
| Amperage | 30 Amps |
| Voltage | 250V |
| Number of Conductors | 4 |
| Wire Gauge | 10/4 AWG |
| Jacket Type | SJT / SJOOW |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | RoHS Certified |
Documents: RoHS REACH Conflict Minerals Report (CMRT)
Applications: Hardwire a 30A power cord into a piece of equipment or female connector in the field
AKA: NEMA L15-30R power cable whips, L15-30R OEM cables, wire harness locking power cords
Available Options include cable crimps – Quick Disconnects, Ring Terminals, Fork / Spades – Email us for further customization
.png)
Part Number: IBX-9168-XX (XX = Length)
