L16-30P to 430C7W Pin and Sleeve Connector

$189.19

Adapt a NEMA L16-30P locking plug to IEC60309 pin and sleeve 430C7W connector

SKU: IBX-2762

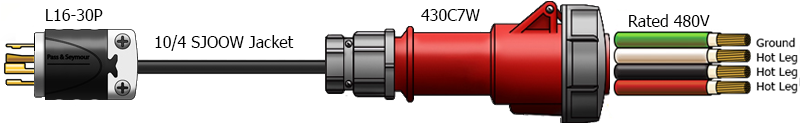

 L16-30P to 430C7W Power Cord Plug Adapter


 Specifications:

Male Plug                                         NEMA L16-30P
Female Connector  IEC 60309 430C7W (Pin and Sleeve)
Amperage 30 Amps
Voltage 480V
Length 1 Foot
Conductors 4 wire
Wire Gauge 10/4
Jacket SJOOW

 Technical Notes:  Uses 10/4 SJOOW premium grade water/oil resistant jacket –  Ground is in the 7 O’Clock position

 Applications: Convert a pin and sleeve 430C7W plug to a NEMA L16-30P twist lock plug
 For use in areas of high moisture, generators, data centers, watertight marine applications

 AKA: 430C7W Pigtail Adapter, 480V pin and sleeve power cord, 430C7W to L16-30P

Custom built to order

 Part Number: IBX-2762




Fax Purchase Orders to 1-800-447-1381 or email [email protected]
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
