Adapt a NEMA L21-20P locking plug to IEC60309 pin and sleeve 520C9W connector

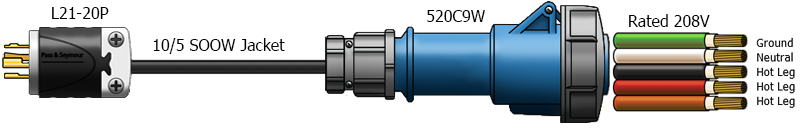

L21-20P to IEC 60309 Pin and Sleeve 520C9W Power Cord Plug Adapter
Specifications:
| Male Plug | NEMA L21-20P |
| Female Connector | IEC 60309 520C9W (Pin and Sleeve) |
| Amperage | 20 Amps |
| Voltage | 208V |
| Length | 1 Foot |
| Conductors | 5 wire |
| Wire Gauge | 10/5 |
| Jacket | SOOW |
Technical Notes: Uses 10/5 SOOW premium grade water/oil resistant jacket – Ground is in the 9 O’Clock position
Applications: Convert a pin and sleeve 520C9W plug to a NEMA L21-20P twist lock plug
For use in areas of high moisture, generators, data centers, watertight marine applications
AKA: 520C9W Pin and Sleeve Adapter, 208V pin and sleeve power cord, 520C9W to L21-20P
Custom built to order
Part Number: IBX-2760
