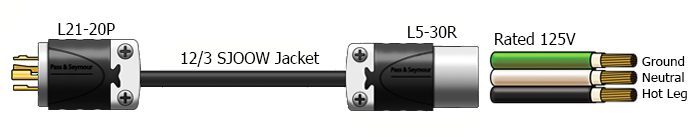

NEMA L21-20P to L5-30R Power Adapter Cables
NEMA L21-20P to L5-30R Power Cord Plug Adapter, 1 Foot, 20A, 125V
Specifications:
| Plug Type | L21-20P |
| Connector Type | L5-30R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJOOW |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Make sure your device doesn’t need more amps than the outlet allows
Applications: Convert a NEMA locking L5-30 plug to a NEMA Locking L21-20 connector
Also Known As: L5-30P Adapter, L5-30P to L21-20R Pigtail, L21-20 to L5-30 Adapter
Custom built to order
Part Number: IBX-5162-X (X = Length)
