NEMA L21-30P to L5-30R Splitter Cables

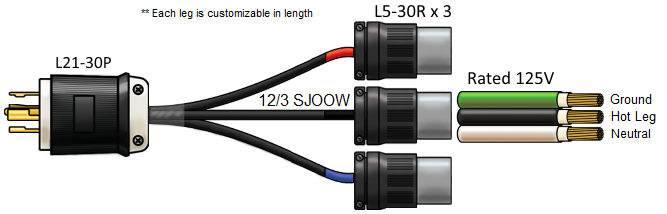

L21-30P to L5-30R Splitter Power Cord, 10 Foot, 3-Phase, 20 Amps, 125V
Specifications:
| Plug Type | L21-30P |
| Connector | L5-30R X 3 |
| Length | 10 Foot (Customizable Legs) |
| Amps | 20A |
| Voltage | 125V |
| Number of Wires | 3 |
| Wire AWG | 12 AWG |
| Jacket Type | SJOOW |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Heavy-Duty industrial grade SJOOW jacket
*12 AWG wire is the maximum x 3 that can be terminated into an L21-30P plug
* Each leg can be set to a custom length: IE: Phase A: 3 Foot, Phase B: 6 Foot, Phase C: 10 Foot
Applications: Allows you to run three single phase devices from a 3-Phase L21-30R Receptacle
Also Known As: L21-30 to L5-30R 3-way Splitter Cord, L21-30P to L5-30, L21-30 Splitter Cable
Part Number: IBX-2150-XX (XX = Length)
