Adapt a NEMA L23-30P locking plug to IEC60309 pin and sleeve 530C5W connector

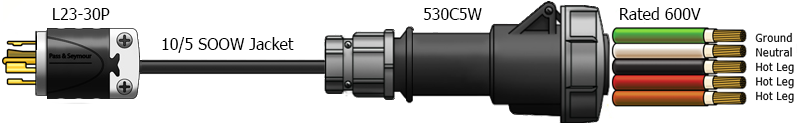

L23-30P to 530C5W Power Cord Plug Adapter
Specifications:
| Male Plug | NEMA L23-30P |
| Female Connector | IEC 60309 530C5W (Pin and Sleeve) |
| Amperage | 30 Amps |
| Voltage | 600V |
| Length | 1 Foot |
| Conductors | 5 wire |
| Wire Gauge | 10/5 |
| Jacket | SOOW |
Technical Notes: Uses 10/5 SOOW premium water/oil resistant jacket – Ground is in the 5 O’Clock position
Applications: Convert a pin and sleeve 530C5W plug to a NEMA L23-30P twist lock plug
For use in areas of high moisture, generators, data centers, watertight marine applications
AKA: 530C5W Pin and Sleeve Adapter, 600V pin and sleeve power cord, 530C5W to L23-30P
Custom built to order
Part Number: IBX-2768
Fax Purchase Orders to 1-800-447-1381 or email [email protected]
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
