L5-30P to 5-20R Plug Adapter Power Cord

$34.35

NEMA L5-30P to 5-20R Power Adapter Cables

SKU: IBX-1723-01

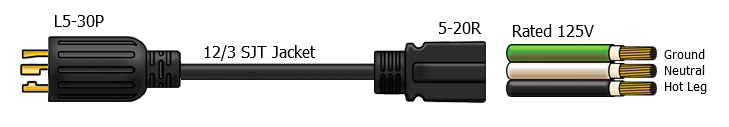

NEMA L5-30P to 5-20R Power Cord Plug Adapter, 1 Foot, 20A, 125V

l5-30p to 5-20r


Specifications:

Plug Type                        L5-30P
Connector Type 5-20R
Length 1 Foot (Custom Lengths Available)
Amperage 20 Amps
Voltage                               125V
Number of Conductors 3
Wire Gauge 12 AWG
Jacket Type SJT
Temperature Rating
105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity

Technical Notes:  Make sure your device doesn’t need more amps than the outlet allows

 Applications: Convert a NEMA 5-15/20 plug into a L5-30 locking socket

 Also Known As:  L5-30P Adapter, L5-30P to 5-20R Pigtail, 5-20 to L5-30 Adapter

   Part Number: IBX-1723
