Supply End: NEMA locking L5-30 Equipment End: IEC 60320 C13

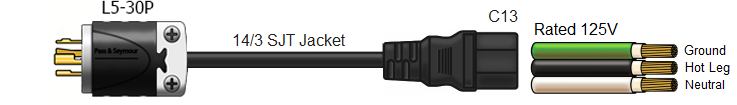

NEMA L5-30P to C13 Power Cords – 14/3 SJT Cable, 15A/125V
Specifications:
Male Plug | L5-30P |
Female Connector | C13 |
Amperage | 15A |
Voltage | 125V |
Conductors | 3 wire |
Wire Gauge | 14/3 |
Jacket | SJT |
Technical Notes: The female C13 connector is mated with a male C14 inlet, found on most computers
Applications: Convert a NEMA locking L5-30 plug to an IEC C13 connector
Part number: IBX-6154-X
Related Items:
L5-30 to C19 Power Cord L5-30R Flanged Outlet L5-30R Twist-Lock Receptacle
