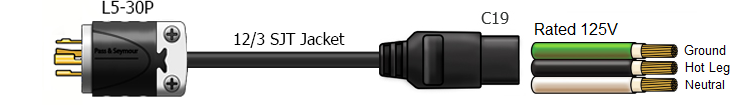

NEMA 20 Amp L5-30P to IEC 60320 C19 Power Cables
NEMA L5-30P to C19 Power Cords – 12/3 SJT Cable, 20A/125V
Specifications:
| Male Plug | L5-30P |
| Female Connector | C19 |
| Amperage | 20A |
| Voltage | 125V |
| Conductors | 3 wire |
| Wire Gauge | 12/3 |
| Jacket | SJT |
Technical Notes: The female C19 connector is mated with a male C20 inlet, found on most servers
Applications: Convert a NEMA locking L5-30 plug to an IEC C19 connector
Part number: IBX-4941-X
