L6-30P to L14-20R Plug Adapter Power Cord

L6-30P to L14-20R Plug Adapter Power Cord

$64.90

NEMA L6-30P to L14-20R Power Adapter Cables

SKU: IBX-5169

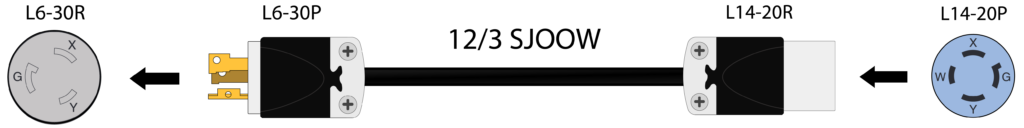

NEMA L6-30P to L14-20R Power Cord Plug Adapter, 1 Foot, 20A, 250V

l6 30p to l14 20r

Specifications:

Plug Type                        L6-30P
Connector Type L14-20R
Length 1 Foot (Custom Lengths Available)
Amperage 20 Amps
Voltage                               250V
Number of Conductors 3
Wire Gauge 12 AWG
Jacket Type SJT
Temperature Rating
 105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity

Technical Notes:  Make sure your device doesn’t need more amps than the outlet allows

 Applications: Convert a NEMA locking L14-20P plug to fit into a L6-30R locking socket

Custom built to order

 Also Known As:  L14-20 Adapter, L14-20P to L6-30R Pigtail, L6-30 to L14-20 Adapter, L6-30P to L14-20R

   Part Number: IBX-5169
