L6-30P to L14-30R Plug Adapter Power Cord

L6-30P to L14-30R Plug Adapter Power Cord

$61.74

NEMA L6-30P to L14-30R Power Adapter Cables

SKU: IBX-3539

 NEMA L6-30P to L14-30R Power Cord Plug Adapter, 1 Foot, 30A, 250V

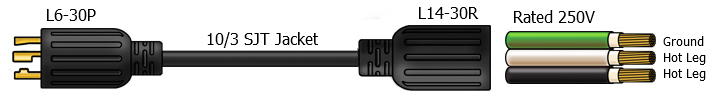

l6-30p to L14-30

Specifications:

Plug Type                        L6-30P
Connector Type L14-30R
Length 1 Foot (Custom Lengths Available)
Amperage 30 Amps
Voltage                               250V
Number of Conductors 3
Wire Gauge 10 AWG
Jacket Type SJT
Temperature Rating
 105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity

 Technical Notes:  Make sure your device doesn’t need more amps than the outlet allows

 Applications: Convert a NEMA locking L14-30P plug to fit into a L6-30R locking socket

 Also Known As:  L14-30 Adapter, L14-30P to L6-30R Pigtail, L6-30 to L14-30 Adapter, L6-30P to L14-30R

   Part Number: IBX-3539
