NEMA 30 Amp L6-30P to ROJ Power Cord Whips

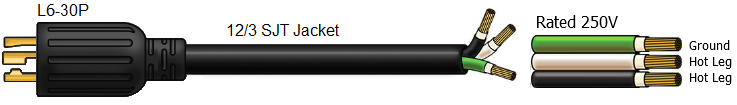

NEMA L6-30P to ROJ Power Cord Whips – 30A, 250V
Specifications:
| Plug Type | L6-30P |
| Connector Type | ROJ Stripped End / Or Blunt Cut |
| Length | 1-25 Foot w/ Molded Plug – Above 25 Foot uses mechanical plug |
| Amperage | 30 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 10/3 AWG |
| Jacket Type | SJT / SJOOW |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | RoHS Certified |
Documents: RoHS REACH Conflict Minerals Report (CMRT)
Applications: Hardwire an L6-30P power cord into a piece of equipment or female connector in the field
AKA: NEMA L6-30P power cable whips, L6-30P OEM cables, wire harness locking power cords
Available Options include cable crimps – Quick Disconnects, Ring Terminals, Fork / Spades – Email us for further customization
.png)
Part Number: IBX-8003-XX (XX = Length)
