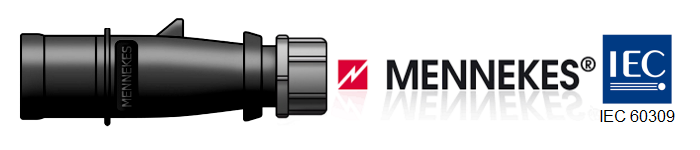

IEC 60309 430P5W 3-Pole, 4-Wire, 30 Amp, 600V Pin and Sleeve Plug
Mennekes 430P5W Plug, 30A, 600V, IEC 60309
Specifications:
| Plug Type | 430P5W (IEC 60309) |
| Amperage | 30 Amps |
| Voltage | 600V |
| Manufacturer Part # | ME430P5W |
| # of Poles / Wires | 3-Pole, 4 Wire |
| Wire AWG Compatibility | 8 AWG to 12 AWG |
| IP Rating | IP67 |
| Phase |
Three Phase |
| Color | Black |
| Certifications | UL Listed |
Applications: Attaches to the end of an electrical cord and plugs into a compatible 430C5W connector or 430R5W receptacle
Part # Explanation: 430P5W – 4 = # of Wires, 30 = Amps, P = Plug, 5 = Clock Postion of Ground, W = Watertight
