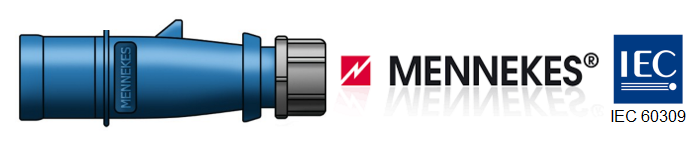

IEC 60309 460P9W 3-Pole, 4-Wire, 60 Amp, 250V Pin and Sleeve Plug
Mennekes 460P9W Plug, 60A, 220V – 250V, IEC 60309
Specifications:
| Plug Type | 460P9W (IEC 60309) |
| Amperage | 60 Amps |
| Voltage | 220V, 230V, 240V, 250V |
| Manufacturer Part # | ME460P9W |
| # of Poles / Wires | 3-Pole, 4 Wire |
| Wire AWG Compatibility | 4 AWG to 8 AWG |
| IP Rating | IP67 |
| Phase |
Three Phase |
| Color | Blue |
| Certifications | UL Listed |
Applications: Attaches to the end of an electrical cord and plugs into a compatible 460C9W connector or 460R9W receptacle
Part # Explanation: 460P9W – 4 = # of Wires, 60 = Amps, P = Plug, 9 = Clock Postion of Ground, W = Watertight
