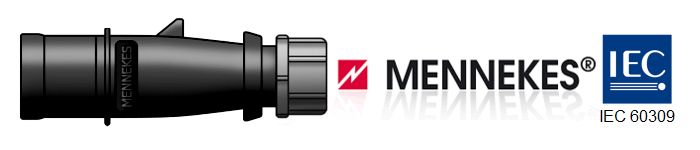

IEC 60309 520P5W 4-Pole, 5-Wire, 20 Amp, 347/600V Pin and Sleeve Plug
Mennekes 520P5W Plug, 20A, 600V, IEC 60309
Specifications:
| Plug Type | 520P5W (IEC 60309) |
| Amperage | 20 Amps |
| Voltage | 347/600V |
| Manufacturer Part # | ME520P5W |
| # of Poles / Wires | 4-Pole, 5 Wire |
| Wire AWG Compatibility | 10 AWG to 14 AWG |
| IP Rating | IP67 |
| Phase |
Three Phase |
| Color | Black |
| Certifications | UL Listed |
Applications: Attaches to the end of an electrical cord and plugs into a compatible 520C5W connector or 520R5W receptacle
Part # Explanation: 520P5W – 5 = # of Wires, 20 = Amps, P = Plug, 5 = Clock Postion of Ground, W = Watertight
