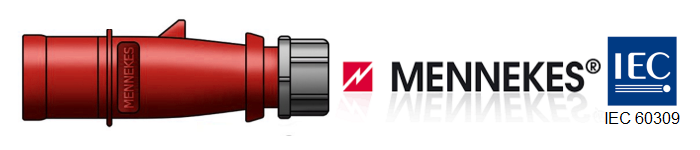

IEC 60309 520P7W 4-Pole, 5-Wire, 20 Amp, 277/480V Pin and Sleeve Plug
Mennekes 520P7W Plug, 20A, 480V, IEC 60309
Specifications:
| Plug Type | 520P7W (IEC 60309) |
| Amperage | 20 Amps |
| Voltage | 480V |
| Manufacturer Part # | ME520P7W |
| # of Poles / Wires | 4-Pole, 5 Wire |
| Wire AWG Compatibility | 10 AWG to 14 AWG |
| IP Rating | IP67 |
| Phase |
Three Phase |
| Color | Red |
| Certifications | UL Listed |
Applications: Attaches to the end of an electrical cord and plugs into a compatible 520C7W connector or 520R7W receptacle
Part # Explanation: 520P7W – 5 = # of Wires, 20 = Amps, P = Plug, 7 = Clock Postion of Ground, W = Watertight
