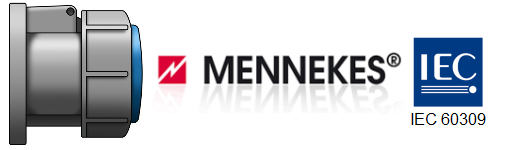

ME 520R9W 4-Pole, 5-Wire, 20 Amp, 120-208V Pin and Sleeve Receptacle
Mennekes 520R9W Outlet, 20A, 120-208V, IEC 60309
Specifications:
| Outlet Type | 520R9W (IEC 60309) |
| Amperage | 20 Amps |
| Voltage | 120-208V |
| Manufacturer Part # | ME520R9W |
| # of Poles / Wires | 4-Pole, 5 Wire |
| Wire AWG Compatibility | 10 AWG to 14 AWG |
| IP Rating | IP67 |
| Phase |
Three Phase |
| Color | Blue |
| Certifications | UL Listed |
Applications: Mounts into a wall and is compatible with 520P9W plug
Part # Explanation: 520R9W – 5 = # of Wires, 20 = Amps, R = Outlet, 9 = Clock Postion of Ground, W = Watertight
