IEC 60309 530C5W 4-Pole, 5-Wire, 30 Amp, 347/600V Pin and Sleeve Connector

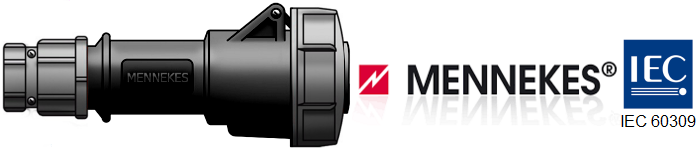

Mennekes 530C5W Connector, 30A, 600V, IEC 60309
Specifications:
| Connector Type | 530C5W (IEC 60309) |
| Amperage | 30 Amps |
| Voltage | 600V |
| Manufacturer Part # | ME530C5W |
| # of Poles / Wires | 4-Pole, 5 Wire |
| Wire AWG Compatibility | 8 AWG to 12 AWG |
| IP Rating | IP67 |
| Phase |
Three Phase |
| Color | Black |
| Certifications | UL Listed |
Applications: Attaches to the end of an electrical cord and plugs into a compatible 530P5W connector or 530B5W receptacle
Part # Explanation: 530C5W – 5 = # of Wires, 30 = Amps, C = Connector, 5 = Clock Postion of Ground, W = Watertight
