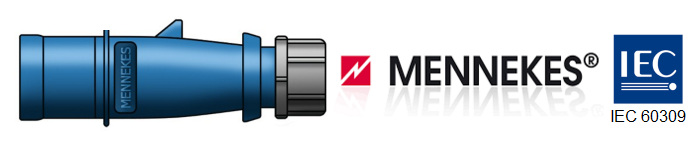

IEC 60309 530P9W 4-Pole, 5-Wire, 30 Amp, 120/208V Pin and Sleeve Plug
Mennekes 530P9W Plug, 30A, 220V – 250V, IEC 60309
Specifications:
| Plug Type | 530P9W (IEC 60309) |
| Amperage | 30 Amps |
| Voltage | 120/208V |
| Manufacturer Part # | ME530P9W |
| # of Poles / Wires | 4-Pole, 5 Wire |
| Wire AWG Compatibility | 8 AWG to 12 AWG |
| IP Rating | IP67 |
| Phase |
Three Phase |
| Color | Blue |
| Certifications | UL Listed |
Applications: Attaches to the end of an electrical cord and plugs into a compatible 530C9W connector or 530R9W receptacle
Part # Explanation: 530P9W – 5 = # of Wires, 30 = Amps, P = Plug, 9 = Clock Postion of Ground, W = Watertight
