NEMA L16-20P to 420C7W Pin and Sleeve Connector

$154.44

Adapt a NEMA L16-20P locking plug to IEC60309 pin and sleeve 420C7W connector

SKU: IBX-2777

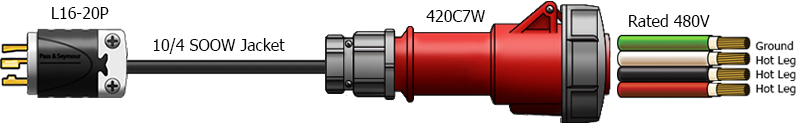

 NEMA L16-20P to IEC 60309 Pin and Sleeve 420C7W Power Cord Plug Adapter


 Specifications:

Male Plug                                         NEMA L16-20P
Female Connector  IEC 60309 420C7W (Pin and Sleeve)
Amperage 20 Amps
Voltage 480V
Length 1 Foot
Conductors 4 wire
Wire Gauge 10/4
Jacket SOOW

 Technical Notes:  Uses 10/4 SOOW premium grade water/oil resistant jacket –  Ground is in the 7 O’Clock position

 Applications: Convert a pin and sleeve 420C7W plug to a NEMA L16-20P twist lock plug
 For use in areas of high moisture, generators, data centers, watertight marine applications

 AKA: 420C7W Pin and Sleeve Adapter, 480V pin and sleeve power cord, 420C7W to L16-20P

Custom built to order

 Part Number: IBX-2777
