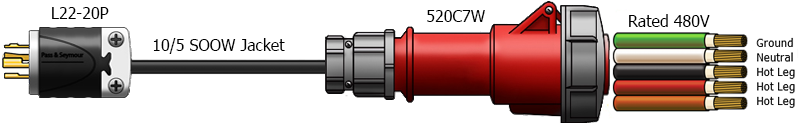

Adapt a NEMA L22-20P locking plug to IEC60309 pin and sleeve 520C7W connector
NEMA L22-20P to IEC 60309 Pin and Sleeve 520C7W Power Cord Plug Adapter
Specifications:
| Male Plug | NEMA L22-20P |
| Female Connector | IEC 60309 520C7W (Pin and Sleeve) |
| Amperage | 20 Amps |
| Voltage | 480V |
| Length | 1 Foot |
| Conductors | 5 wire |
| Wire Gauge | 10/5 |
| Jacket | SOOW |
Technical Notes: Uses 10/5 SOOW premium grade water/oil resistant jacket – Ground is in the 7 O’Clock position
Applications: Convert a pin and sleeve 520C7W plug to a NEMA L22-20P twist lock plug
For use in areas of high moisture, generators, data centers, watertight marine applications
AKA: 520C7W Pin and Sleeve Adapter, 480V pin and sleeve power cord, 520C7W to L22-20P
Custom built to order
Part Number: IBX-2761
