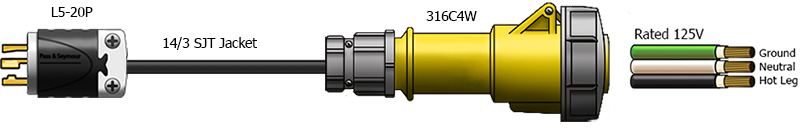

Adapt a NEMA L5-20P locking plug to IEC60309 pin and sleeve 316C4W connector
1 Foot NEMA L5-20P to IEC 316C4W Pin and Sleeve Plug Adapter
Specifications:
| Male Plug | NEMA L5-20P |
| Female Connector | IEC 60309 316C4W (Pin and Sleeve) |
| Amperage | 16A |
| Voltage | 125V |
| Length | 1 Foot |
| Conductors | 3 wire |
| Wire Gauge | 14/3 |
| Jacket | SJT |
Technical Notes: Uses 14/3 SJT premium grade jacket.
Applications: Convert a 316C4W plug to a NEMA L5-20P twist lock plug
Custom built to order
Part Number: IBX-2189
