Adapt a NEMA L8-30P locking plug to IEC60309 pin and sleeve 330C7W connector

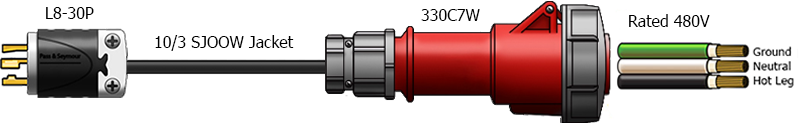

NEMA L8-30P to IEC 60309 Pin and Sleeve 330C7W Power Cord Plug Adapter
Specifications:
| Male Plug | NEMA L8-30P |
| Female Connector | IEC 60309 330C7W (Pin and Sleeve) |
| Amperage | 30 Amps |
| Voltage | 480V |
| Length | 1 Foot |
| Conductors | 3 wire |
| Wire Gauge | 10/3 |
| Jacket | SJOOW |
Technical Notes: Uses 10/3 SJOOW premium grade water/oil resistant jacket – Ground is in the 7 O’Clock position
Applications: Convert a pin and sleeve 330C7W plug to a NEMA L8-30P twist lock plug
For use in areas of high moisture, generators, data centers, watertight marine applications
AKA: 330C7W Pin and Sleeve Adapter, 30A pin and sleeve power cable, 330C7W to L8-30P
Custom built to order
Part Number: IBX-2416
